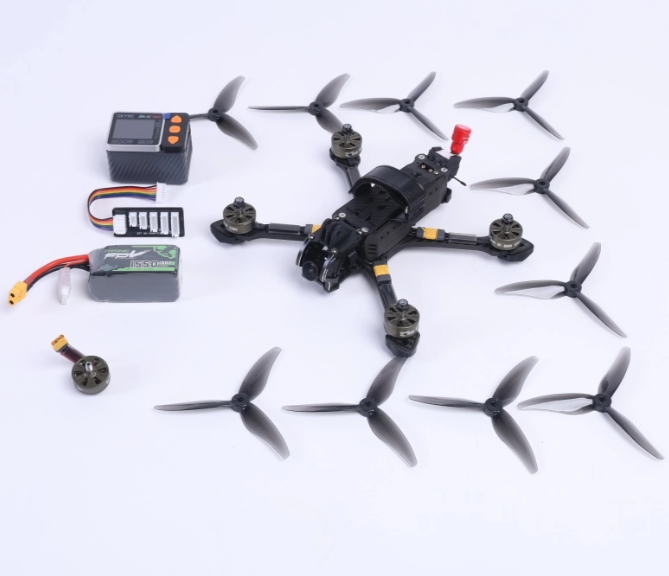

The 5inch Fiber Optic FPV Drone Anti-Interference Aerial Unit is a compact quadcopter designed for operations where radio-frequency (RF) signal disruption is a concern. Rather than relying on conventional wireless control and video links, the unit transmits flight-control data and video through a fiber optic tether, which reduces vulnerability to RF jamming. The airframe weighs under 1 kg and is supplied with a hard-shell carrying case, spare propeller sets, a spare motor, a 1550 mAh lithium-polymer battery, and a transceiver module with an integrated display. The listed unit price is USD 300.
The drone carries video and control signals over a fiber optic cable connected to a ground station. Because data travels as light through glass fiber rather than as radio waves, the communication link is highly resistant to electromagnetic interference. The system supports an HD video feed and real-time flight-control input. Quick-release fiber spools are available so that operators can swap cable lengths in the field.
Built on a 5-inch propeller-class quadcopter frame, the unit is sized for backpack transport and fast setup. The frame uses a carbon-fiber composite structure, and four brushless motors provide thrust for the aircraft and its payload. The standard package includes replacement propellers and one spare motor to support field maintenance.
The aircraft supports custom payload integration through a modular mounting system. Business buyers can specify payload configurations matched to their operational requirements, such as alternative camera modules or sensor packages.
Parameter | Specification |
Frame Class | 5-inch quadcopter |
Takeoff Weight | Under 1 kg |
Communication Link | Fiber optic tether |
Video Output | HD |
Battery | 1550 mAh LiPo (included) |
Motors | 4 × brushless |
Spare Parts Included | Propeller sets, 1 spare motor |
Carrying Case | Included, custom foam interior |
Manufacturing Standard | ISO 9001-certified facility |
Unit Price | USD 300 |
The fiber optic link makes the unit suitable for reconnaissance in built-up areas where RF signals may be contested or monitored. The compact frame allows operation in confined spaces where larger aircraft cannot maneuver.
Security integrators and law enforcement agencies can deploy the unit for situational awareness in urban environments. The tethered connection reduces the risk of signal loss during operations near structures that reflect or block radio signals.
Commercial users in energy, utilities, and construction can use the drone for visual inspection of facilities where RF interference from industrial equipment may affect conventional wireless drones.
The unit is manufactured at an ISO 9001-certified facility with an annual production capacity of over 8,000 units. Redpoint Innovation Co., Ltd. supplies defense organizations, law enforcement agencies, and security system integrators. Each unit undergoes functional testing of the fiber optic link, motor system, and video feed before shipment.

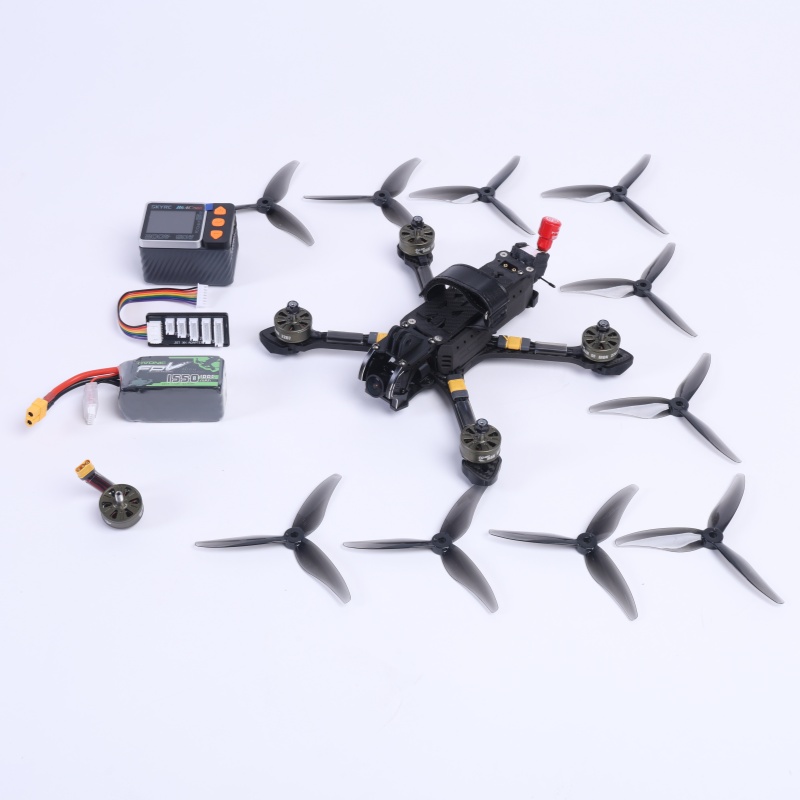

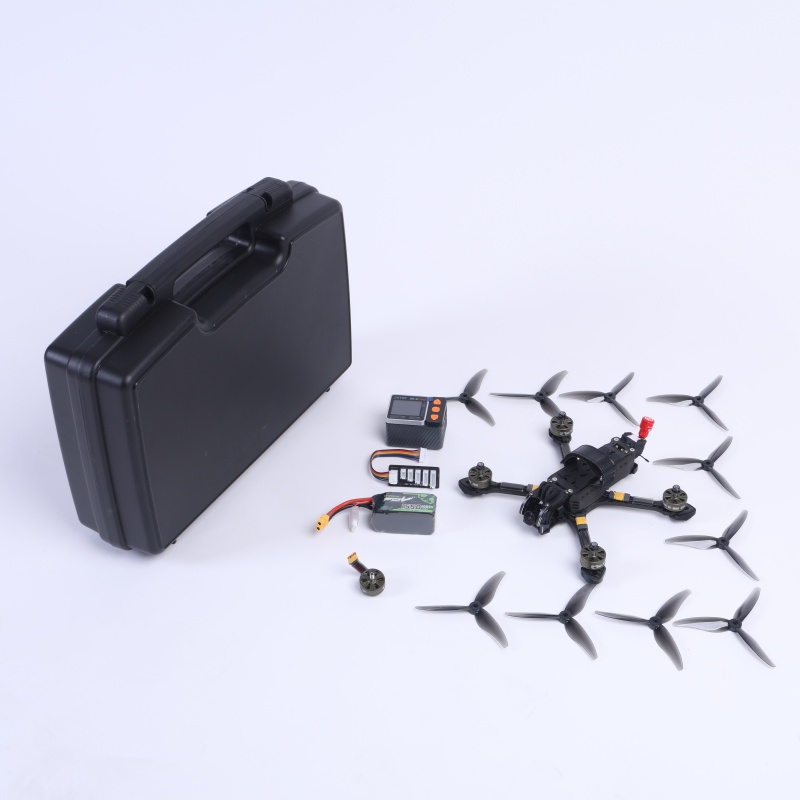

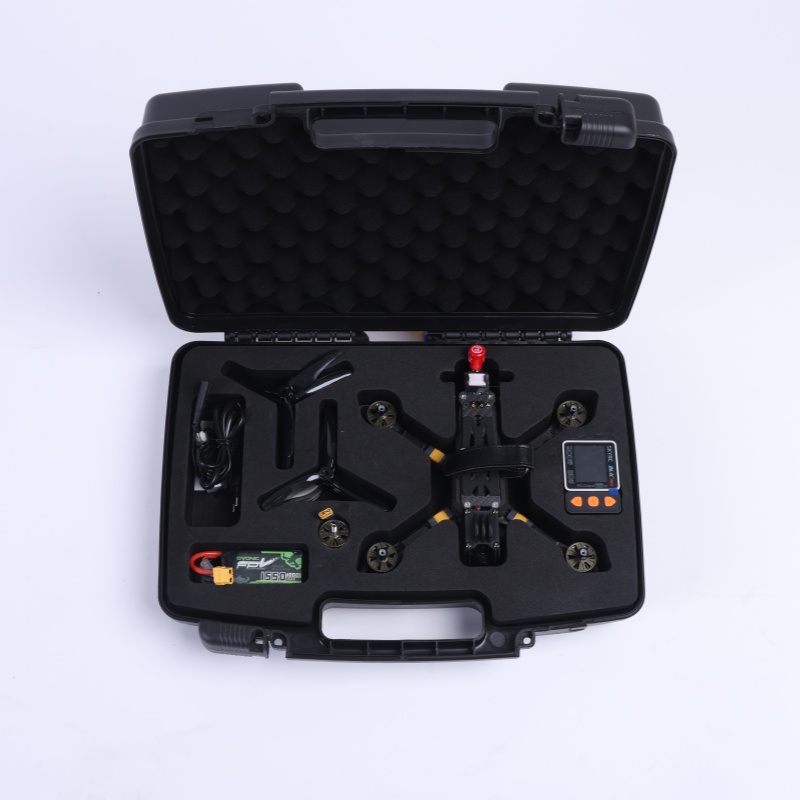

Each unit ships in a hard-shell carrying case with custom-cut foam inserts. The standard package contains the assembled drone frame, mounted propellers, additional spare propeller sets, one spare brushless motor, a 1550 mAh LiPo battery, a fiber optic transceiver module with display, a battery charging cable, and the fiber optic cable assembly.
A conventional drone uses radio signals for control and video, which can be disrupted by jamming or electromagnetic interference. The fiber optic link transmits data as light through a physical cable, making it resistant to RF-based interference.
Operational range is determined by the length of the fiber optic tether. Quick-release spools are available in different lengths; enterprise customers should contact the manufacturer for specific cable-length options and corresponding flight-performance data.
The fiber optic communication link is highly resistant to RF interference because data travels as light through glass fiber. However, no electronic system is entirely free from environmental effects; the drone's onboard electronics remain subject to standard electromagnetic compatibility considerations.
Yes. The drone features a modular payload mounting interface. Business buyers can discuss specific payload requirements with the manufacturer for customized configurations.
The product is listed at USD 300 per unit. For bulk orders and enterprise pricing, buyers should submit an inquiry through the contact form or the listed telephone and email channels.
