Price: 530 USD
Redpoint's 10KM FPV Optical Fiber defeats signal jamming by carrying video and control over a 0.26mm fiber tether instead of radio waves. Tailored for professional operators in dense urban or ECM-heavy environments, it ensures unjammable low-latency HD video with bidirectional S.BUS control. The portable reel deploys G657A2 fiber rated above 50N. ISO 9001-certified factory with 100,000+ annual output supports OEM/ODM and bulk orders for defense and industrial clients worldwide.
| Quantity: | |
|---|---|

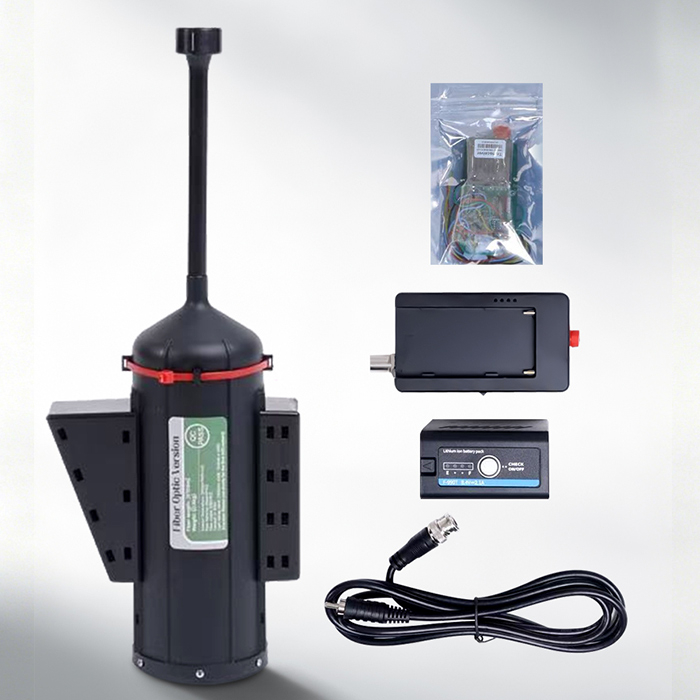

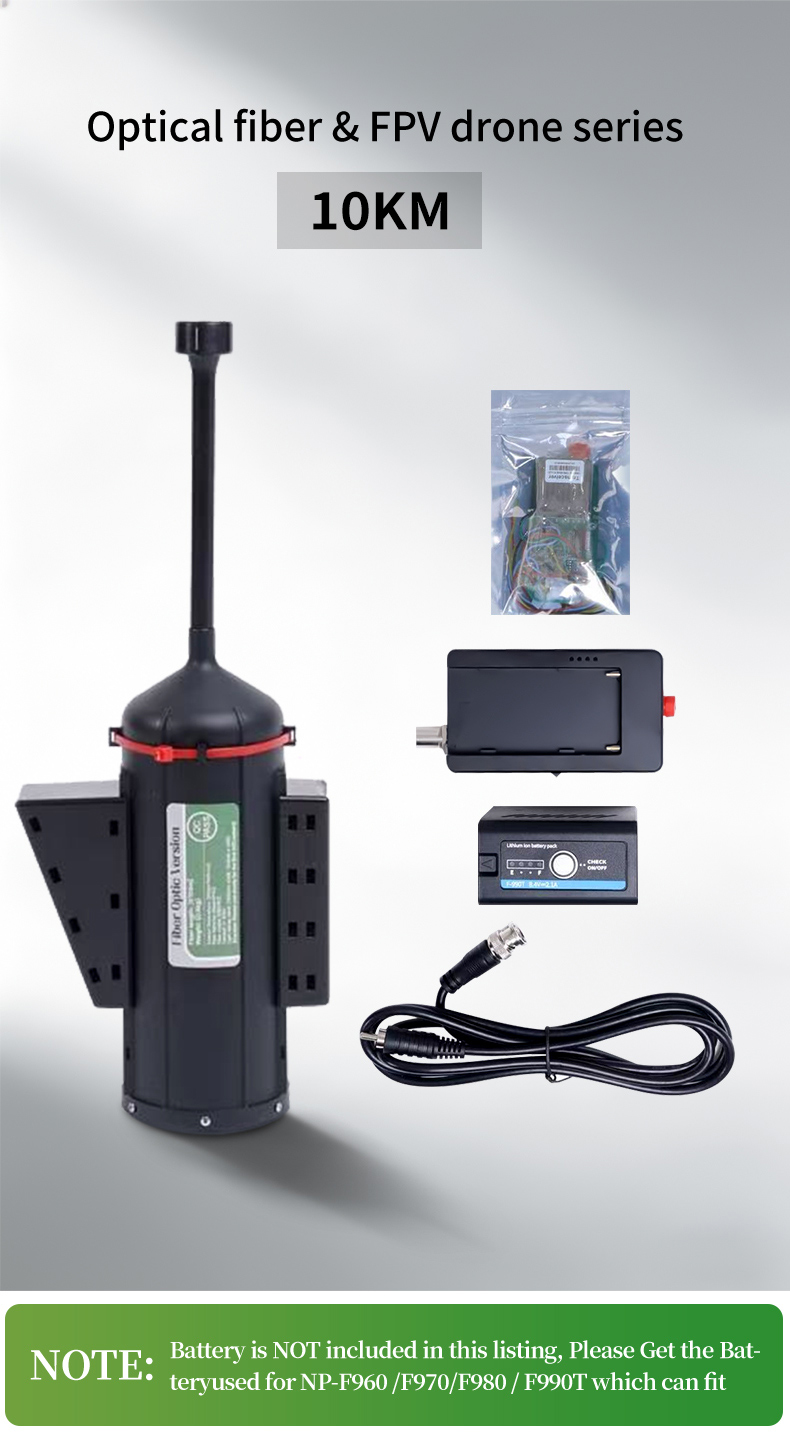

The 10KM FPV Optical Fiber is a tethered drone communication system that transports HD video and bidirectional control signals through a 0.26 mm single-mode fiber tether rather than radio waves. Built for operators working in dense urban or electronically contested environments, the system converts video and S.BUS control data into optical pulses, removing the link's vulnerability to RF jamming and electromagnetic interference. The fiber is pre-wound on a portable ABS canister that mounts to the drone underside and pays out passively during flight. Manufactured in an ISO 9001-certified facility with an annual output exceeding 100,000 units, the product supports OEM and ODM customization as well as bulk orders for defense and industrial clients worldwide. The listed unit price is 530 USD.
Parameter | Specification |
Model | FPV2.0-0.26-10KM |
Fiber Type | G657A2 (bend-insensitive single-mode) |
Fiber Length | 10000+200 m |
Outer Diameter | 0.26 mm ±0.01 |
Weight per Kilometer | 65 g/km |
Tight Buffer Color | Natural (transparent) |
Fiber Connector | FC/UPC (default) |
Attenuation @1310 nm | ≤0.35 dB/km |
Attenuation @1550 nm | ≤0.25 dB/km |
Insertion Loss (with connectors) | ≤4.0 dB @1310 nm; ≤3.0 dB @1550 nm |
Tensile Strength | ≥50 N |
Working Temperature | -40°C to +85°C |
Parameter | Specification |
Canister Material | ABS (black) |
Canister Dimensions | φ13 cm × H31 cm |
Net Weight (canister + fiber) | 980 g |
Inner Box Dimensions | 42.0 × 17.5 × 20.0 cm |
Inner Box Weight | 1350 g |
Outer Carton Dimensions | 45.0 × 38.0 × 44.0 cm |
Outer Carton Weight (6 pcs) | 9600 g |
Units per Outer Carton | 6 pcs |
Video and control data travel as optical signals enclosed within the fiber, so the link neither emits nor receives radio frequency energy. This physical architecture means the connection is not susceptible to standard RF interference sources, including electronic countermeasure equipment. The system carries bidirectional S.BUS control alongside HD video downlink, sustaining a continuous command channel across the full 10 km tether length.

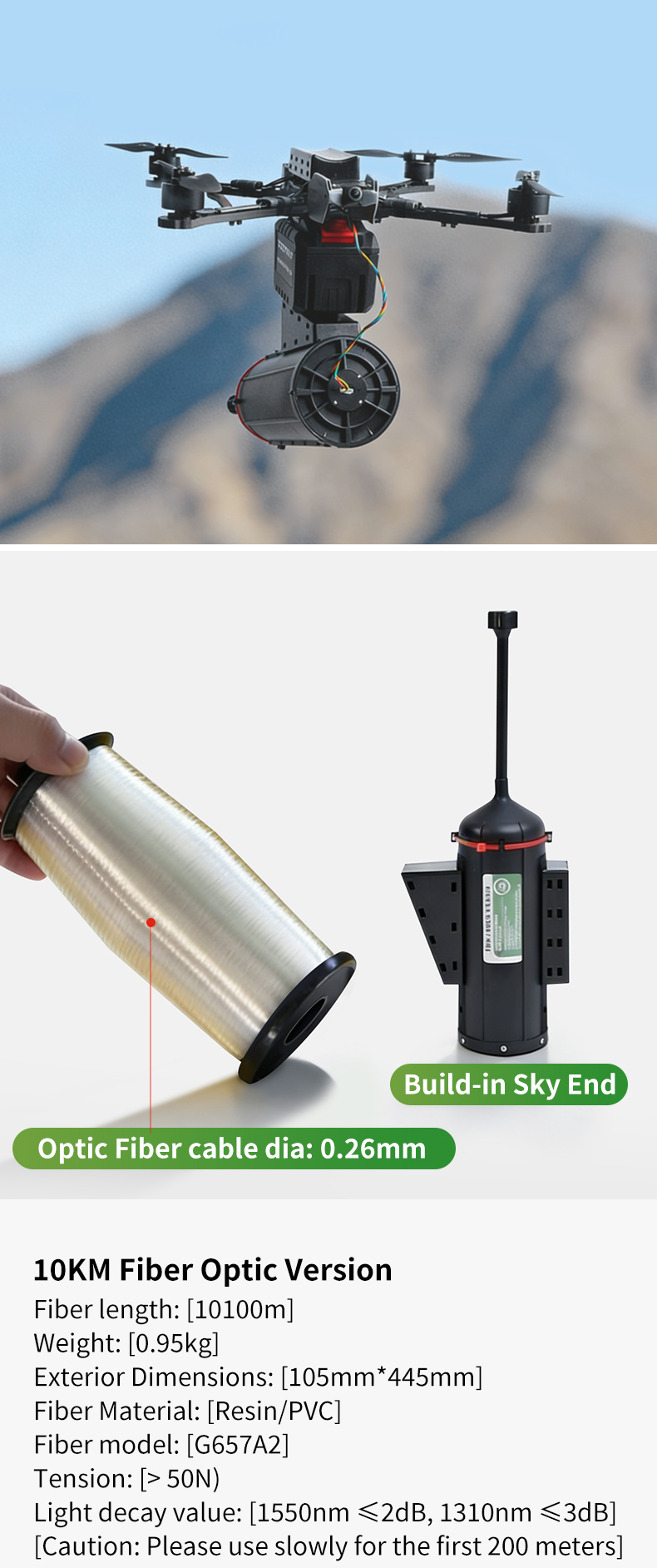

The fiber core conforms to the ITU-T G657A2 standard for bending-insensitive single-mode fiber. Measured attenuation is ≤0.35 dB/km at 1310 nm and ≤0.25 dB/km at 1550 nm. The 0.26 mm diameter and transparent tight-buffer jacket keep the tether visually subtle and aerodynamically lightweight at 65 g/km. The fiber carries a tensile rating above 50 N and operates within -40°C to +85°C.

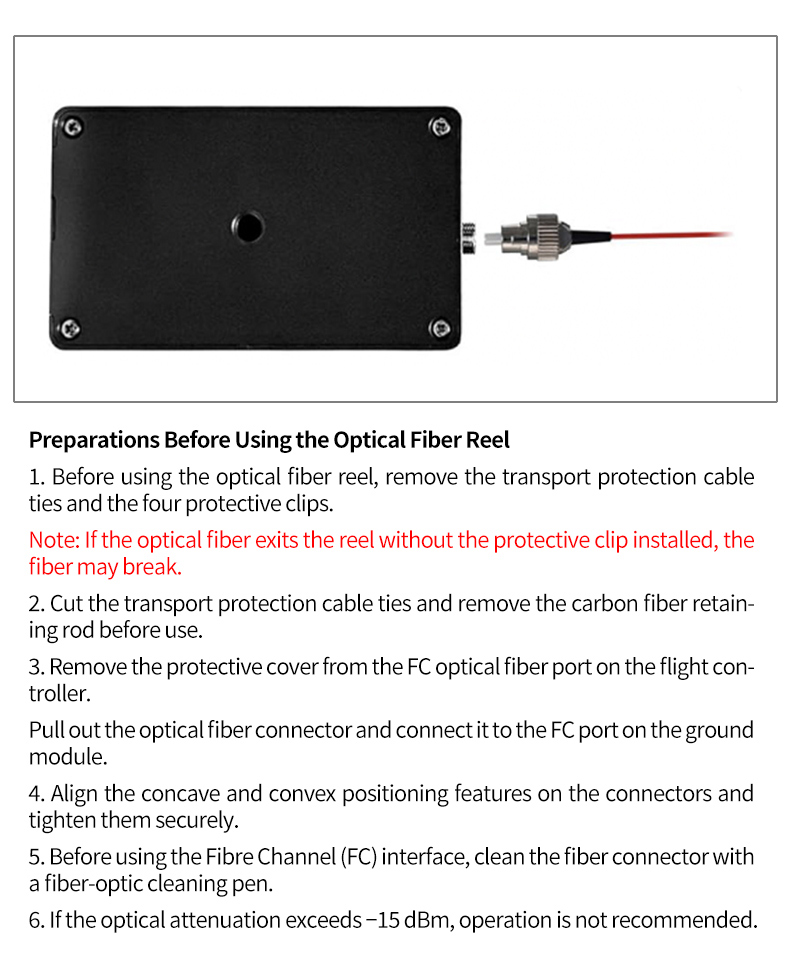

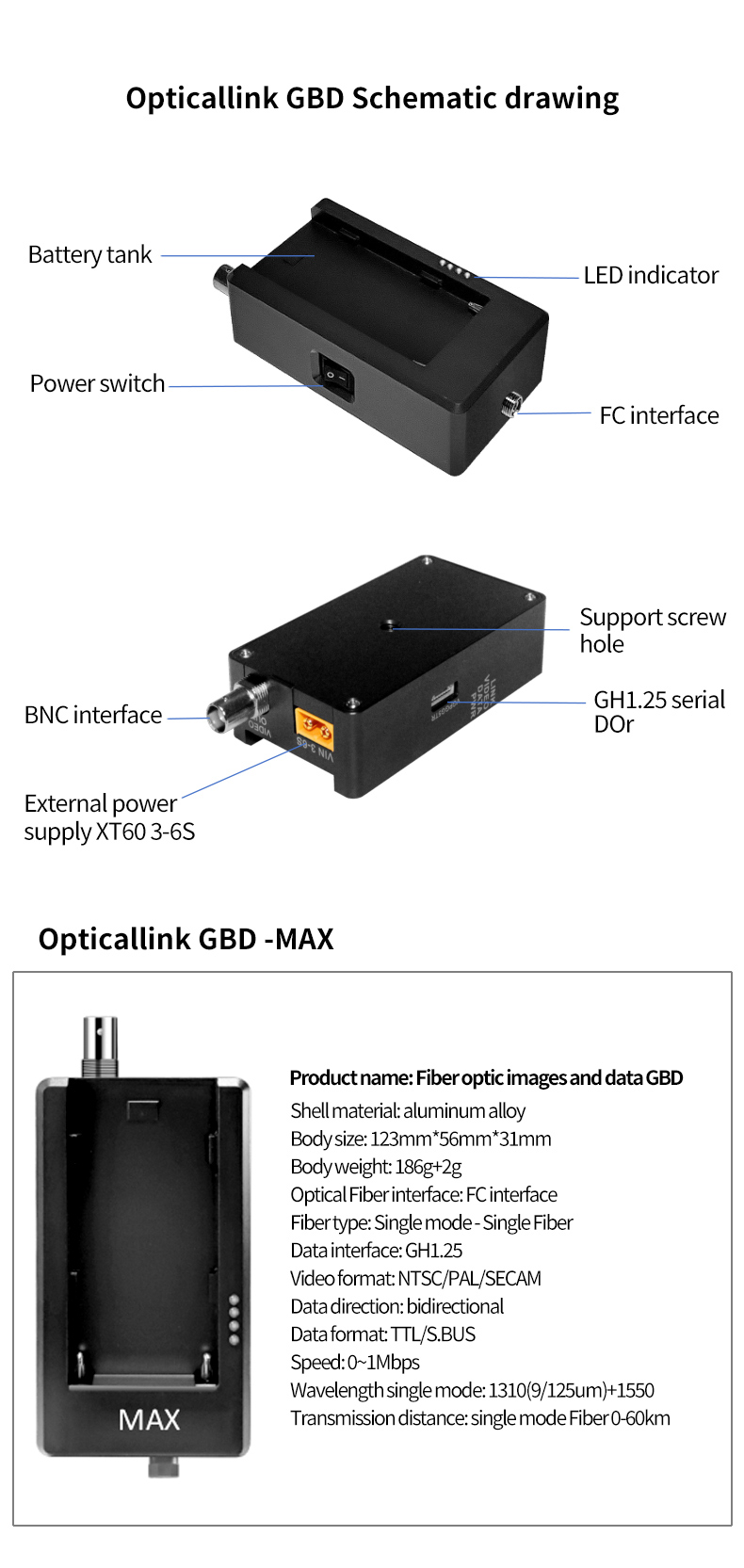

The fiber is pre-wound on a black ABS canister measuring φ13 cm × 31 cm, weighing 980 g including fiber. The canister mounts to the drone underside and pays out fiber passively during ascent and forward flight. FC/UPC connectors on both ends enable direct connection to the airborne optical transmitter and ground receiver modules. The canister supports disassembly and fiber rewinding for reuse after deployment.
The 10KM FPV Optical Fiber serves missions where RF links are unreliable or restricted, including urban surveillance, bridge and tower inspection, border patrol, and industrial site monitoring. Enterprise customers in defense, public safety, energy, and civil engineering deploy the system to maintain continuous HD video and control when operating near towers, power lines, or built-up areas that attenuate radio signals. The 10 km reach covers extended linear assets such as pipelines, railways, and perimeter fences in a single deployment. Commercial users also apply the system for event aerial coverage and traffic monitoring where RF spectrum congestion is a known constraint.

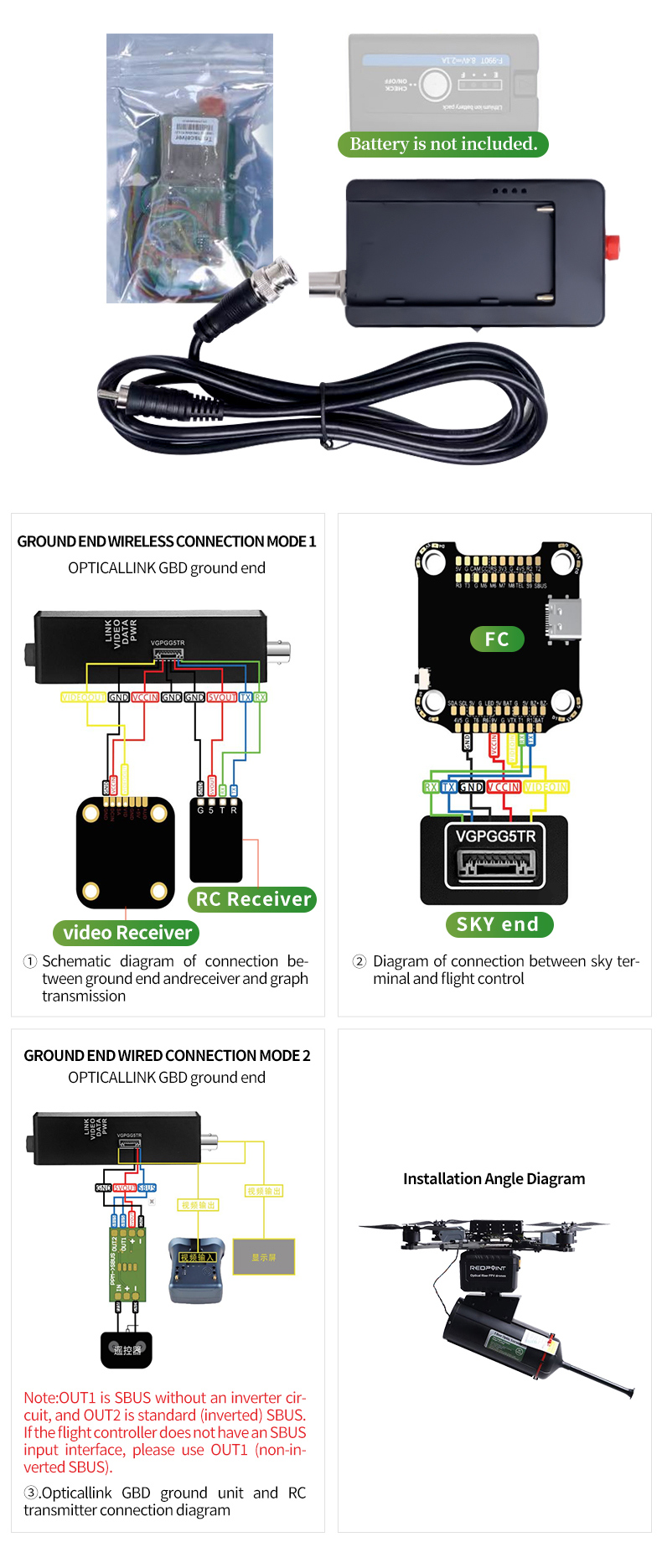

The system supports bidirectional S.BUS control transmitted over the fiber tether alongside HD video. It does not depend on radio-based control protocols.
The G657A2 fiber is rated for a tensile load above 50 N, covering normal multirotor and fixed-wing tethered flight profiles.
Yes. The ISO 9001-certified facility supports OEM and ODM customization, including custom labeling, connector types, and fiber lengths, with annual production capacity exceeding 100,000 units.
The fiber and canister assembly operate within -40°C to +85°C, covering most field deployment environments.
Each unit is packed in an inner box of 42.0 × 17.5 × 20.0 cm (1350 g). Six units fit into an outer carton of 45.0 × 38.0 × 44.0 cm with a total weight of 9600 g.
