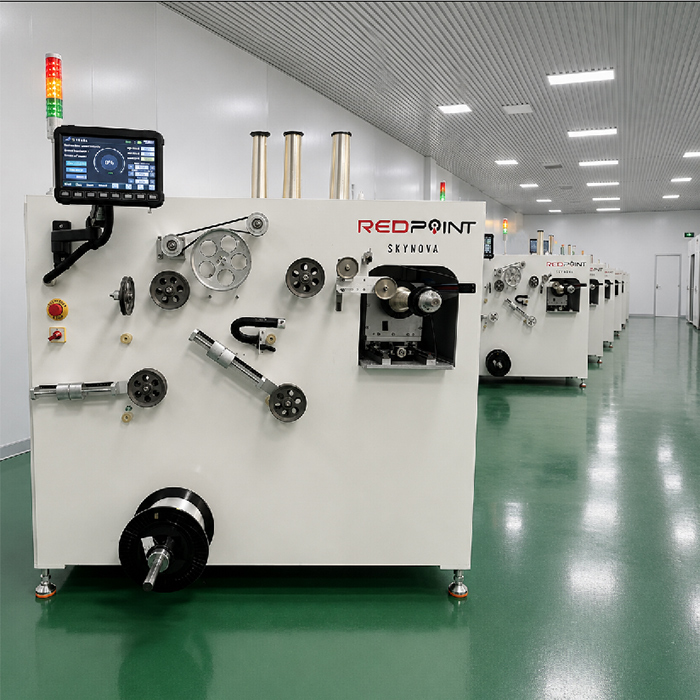

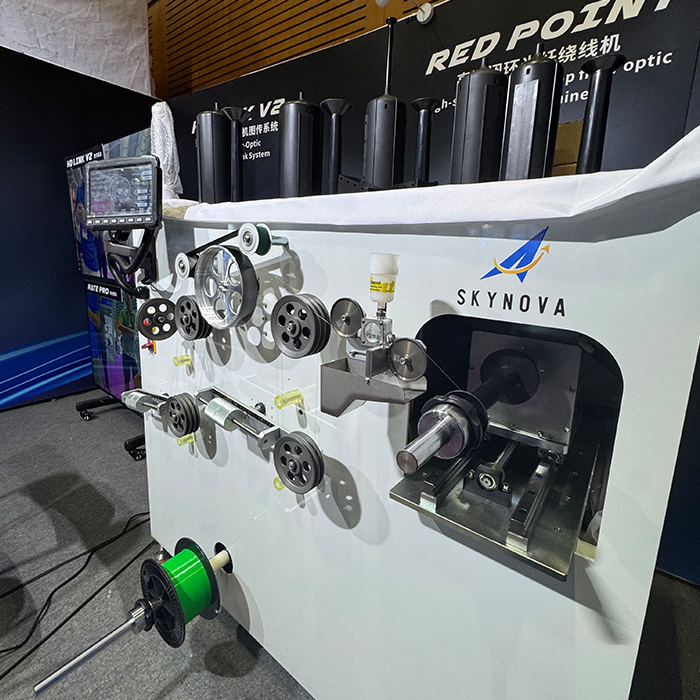

The Redpoint Highwind 500 is a fully automatic fiber winding machine built for production facilities that process fiber optic cable and fine metal wire. It uses an axial arrangement to perform fine wire winding, precision winding, and irregular winding. The machine operates in linear velocity mode with a three-level tension restraint system that maintains consistent tension from the first layer to the last. It is suitable for multi-layer precise winding of fiber products and various metal wire products, and is assembled in an ISO 9001-certified workshop.
This equipment serves FPV drone manufacturers, fiber assembly facilities, and wire processing plants that require uniform winding quality across volume production runs. Custom spool formats are available to match specific production requirements.
The machine uses cam position mode wiring for precision winding. Its axial arrangement reduces product damage associated with large-stroke wiring configurations. Real-time offset of the cam position allows the machine to execute irregular winding patterns.
A secondary traction system delivers low-tension constant winding. Uniform speed winding keeps tension stable during high-speed operation, which helps reduce wire breakage and maintains consistent signal quality in fiber optic products.
A touch screen interface provides parameter setup and operational monitoring. The winding and traverse mechanisms are driven by two stepper motors with 110 mm and 57 mm frame sizes.
model: | Highwind 500 | Wire diameter range: | 0.05-5MM |
Brand: | Redpoint | Winding speed: | ≤500M/M |
Equipment weight: | ≥300Kg | Axis diameter range: | ≤300MM |
Equipment size: | 1750×1050×1450mm | Cable routing itinerary: | ≤360MM |
power waste: | ≤3KW | Incoming materials: | ≤50kg |
Winding reel | ×1 | 110/28nm stepper | ×1 |
Power cord | ×1 | 57/2.8nm | ×1 |
tool | ×1 | Touch screen | ×1 |

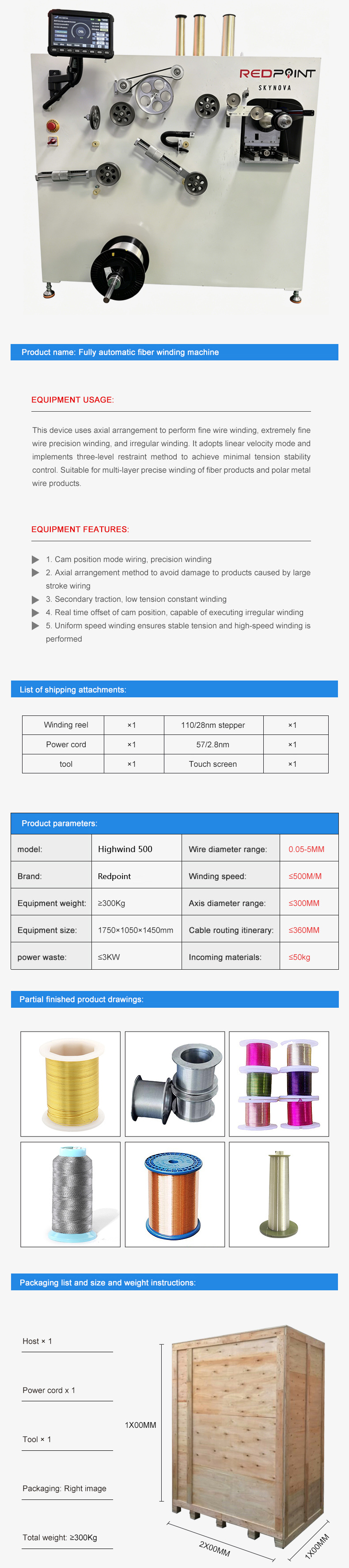

The following data is extracted from the product packaging dimension image:
Item | Value |
Host | ×1 |
Power cord | ×1 |
Tool | ×1 |
Total weight | ≥300Kg |
Packaging dimensions | 2000 mm × 1000 mm |
The Highwind 500 is used by fiber optic cable manufacturers producing tethered drone communication lines, FPV drone assembly facilities requiring precision-wound fiber spools, and metal wire processing plants handling fine gauge materials. The wire diameter range of 0.05–5 mm covers most common fiber and fine wire applications.
For business buyers evaluating this equipment, key decision factors include the maximum feed spool weight of 50 kg, the axis diameter capacity of up to 300 mm, and the traverse length of up to 360 mm. Power consumption is 3 kW or less, compatible with standard industrial power installations. Actual winding speed varies by wire diameter, material, and winding pattern.
The listed maximum winding speed is ≤500 m/min. Actual operating speed depends on wire diameter, material type, and winding pattern.
The machine supports wire diameters from 0.05 mm to 5 mm.
The equipment measures 1750 × 1050 × 1450 mm and weighs 300 kg or more.
Yes, custom spool formats are available. Buyers should provide their spool dimensions to the manufacturer before ordering.
The standard shipment includes the main machine, winding reel, power cord, tool kit, two stepper motors, and a touch screen controller.
